Built-In InGaAs Monitor Photodiode Optical Isolator 1550nm DFB laser Diode Module With and Without TEC

Name: BuiltIn InGaAs Monitor Photodiode Optical Isolator 1550nm DFB laser Diode Module With and Without TEC
Brand: HICORPWELL
Price: 1 USD

Cheap Built-In InGaAs Monitor Photodiode Optical Isolator 1550nm DFB laser Diode Module With and Without TEC for sale

Brand Name : HICORPWELL

Model Number : Fiber Optic Pigtail Coaxial DFB Laser Diode Laser Modules

Certification : ISO9001;2015

Place of Origin : China

MOQ : 10sets

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000pcs Per Week

Packaging Details : 26X5.5X19 cm 0.3KG for 10 pcs

Type : DFB HCW-PLD1550Dxx-S (1550nm-1552nm) Coaxial Laser Module

Wavelength : 1550nm-1552nm

Isolation : Single/double

Chip : CWDM DFB

Tolerance : +/-3nm

Payment : TT/PayPal

Max. Reverse Voltage : 15(PD)

Package Type : Through Hole

Contact Now

Built-In InGaAs Monitor Photodiode Optical Isolator 1550nm DFB laser Diode Module With and Without TEC

1550nm DFB laser diode module has a built-in InGaAs monitor photodiode and an optical isolator integrated inside its package.

Its direct modulation bandwidth is greater than 1.8GHz. This laser diode is suitable for applications in optical networks

such as mobile communication systems and CATV systems.

Features:

Analog bandwidth higher than 1800MHz
High-reliability DFB laser chip at 1310nm or 1550nm
Built-in InGaAs monitor photodiode
Built-in optical isolator
4-pin coaxial pigtailed package, single mode FC/APC or SC/APC connector (or other connector type)

Applications:

Fiber optical repeater systems in mobile communication networks
CATV transmission systems (return paths/links)
Other analog applications

Specifications:
Diodes with standard output 2mW or higher output power 5mW are available.

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit	Test Condition
Storage Temperature	Tstg	-40	100	℃	-
Operating Temperature	Top	-40	85	℃	-
Forward Current(LD)	If(LD)		150	mA
Reverse Voltage(LD)	Vr(PD)		2	V
Forward Current(PD)	If(LD)		2	mA
Reverse Voltage(PD)	Vr(PD)		15	V
Soldering Temp	-	-	260	℃	-
Soldering Time	-	-	10	S	S

Optical & Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Rated Power	Po	6	8		mW	Ith+40mA
Threshold Current	Ith		5	10	mA	CW
Operating Operating	If		45	55	mA	CW,P=Po
Forward Voltage Drop	Vop	-	1.1	1.5	V	CW, Ith+40mA
Cent Wavelength	λc	1540	1550	1560	nm	-3dB
Spectrum Width	Δλ	-		0.2	nm	-20dB
Side-mode Suppression Ratio	SMSR	35		-	dB	-
Bandwidth(3dB)	Bw	-	2.5		GHz	-
Monitor Current	Im	0.1		0.9	mA	CW, Ith+40mA
Dark Current of Monitor	Id	-	-	0.1	uA	5V
Relative Intensity Noise	RIN	-	-155	-150	dB/Hz	CW, 25℃
RF Bandpass Flatness	BF		±1.0		dB	If=Iop,45MHz-2500MHz,T=25 °C
Third-order Distortion	IMD3	-	-55	-	dBc	2 tone test,
Optical Isolation	ISO	30	40	-	dB	25℃

Built-In InGaAs Monitor Photodiode Optical Isolator 1550nm DFB laser Diode Module With and Without TEC

Product Tags:

1550nm DFB laser diode module

DFB laser Diode Module With TEC

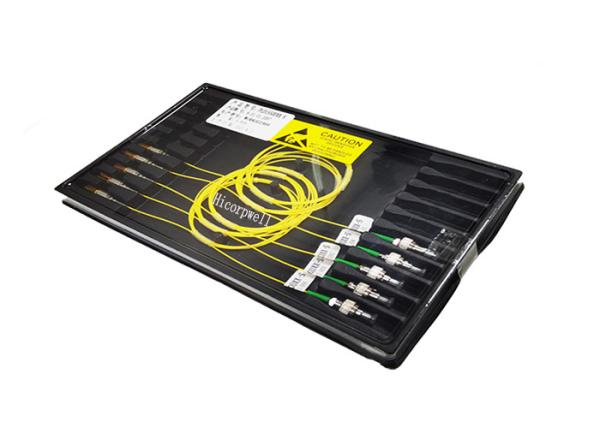

Built-In InGaAs Monitor Photodiode Optical Isolator 1550nm DFB laser Diode Module With and Without TEC Images
