High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications

Model Number : D80

Place of Origin : Guangdong, China

Brand Name : Hicorpwell

MOQ : 1

Price : $238.98-262.72

Fiber-core diameters : 200μm, 300μm, 400μm, 600μm, 800μm

Material : Quartz fiber

Working Wavelength : 1080nm

Cable Length : 10m/20m and optional

Output Interface : QBH

Operating Temperature : -10-+50℃

Service Life : Over 10000hours

Max Handling Power : 1000, 2000, 4000, 6000, 8000W or Specify

Pulse Power : Max. 10KW @ 10ms, Max. 50KW @ 1ms, Max. 1MW @50ns

Loss Power Handling : 1KW for 10 min, 500W Continuously

Beam Pointing Accuracy : 1 deg

Beam Ellipticity : 0.92

Max Fiber Tensile Load : 5 N

Max Water Pressure : 8 Bar

Water Flow : 1.5-3 L/min

Contact Now

Products Description
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications

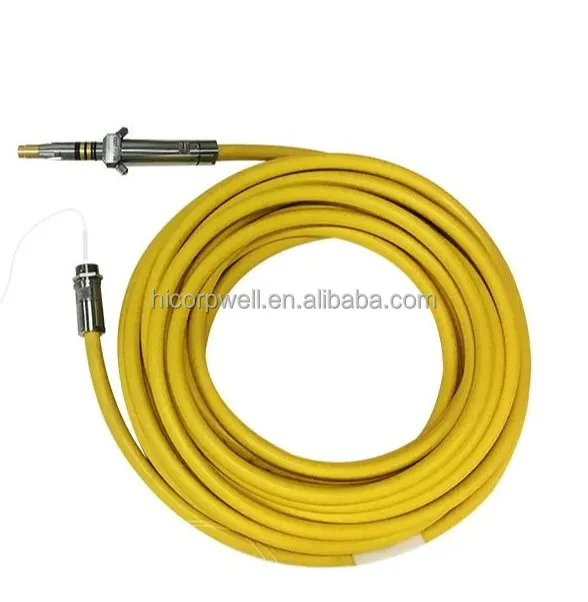

Brief Info on Laser Fiber Cable

Color : Yellow
Specification : 50/125μm, 50/250μm,50/400μm,
50/360μm, 100/360μm,100/200μm

Material : Quartz fiber
Working Wavelength ： 1080nm Cable Length ： 10m/20m and optional
Output Interface ： QBH ， Suitable IPG,Raycus,MAX, JBT,BWT, Reci Laser Source
Operating Temperature ： -10-+50℃， Service Life ： Over 10000hours

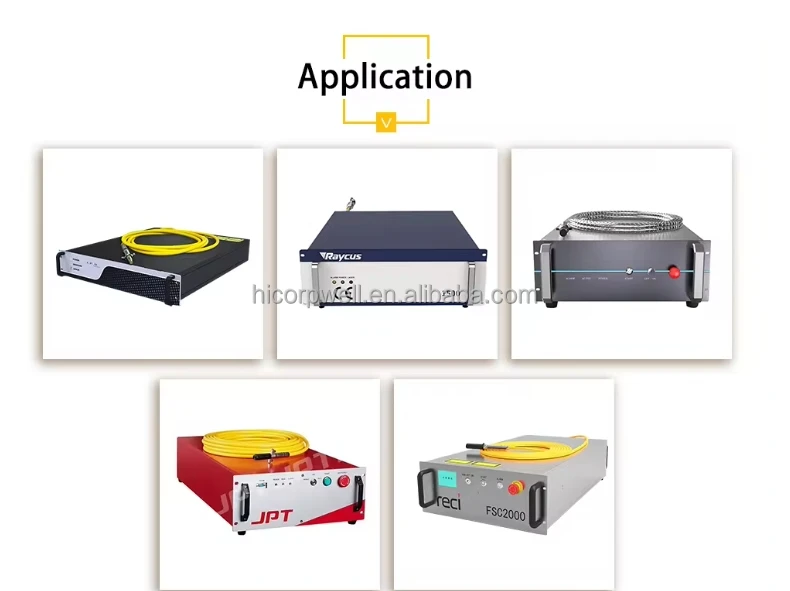

Application

Industrial Processing; High Power Cutting; Laser Drilling; Welding; Rust Removal; 3D Printing Equipment


High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
Product Features:
Product Name ： 12kW MAX LOE Fiber Laser cable
Color ： Yellow , Material , Quartz fiber, Working Wavelength : 1080nm,

Power : 12kW, Cable Length: 20m and optional, Output Interface , QBH,

Suitable : Precitec laser head, Max laser source
Operating Temperature : -10-+50℃, Service Life : Over 10000hours

Application
Industrial Processing; High Power Cutting; Laser Drilling; Welding; Rust Removal; 3D Printing Equipment

Product Name

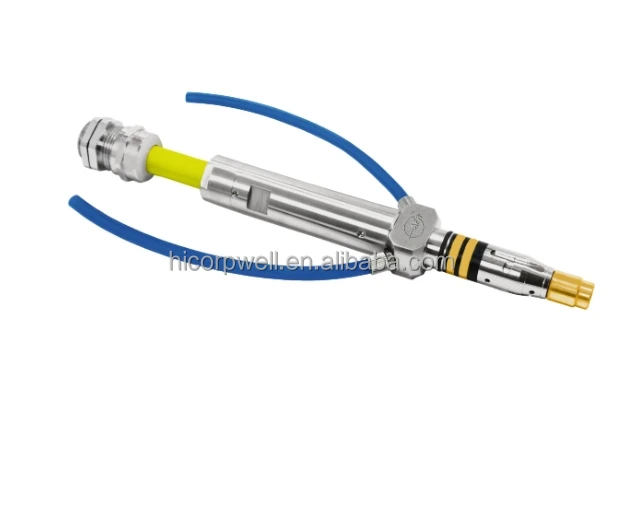

Raycus Q+/QBH Fiber Laser Cable
Color : Yellow ,
Specification , 100/360μm , Material: Quartz fiber, Working Wavelength : 1080nm
Cable Length : 20m and optional, Output Interface : Q+/QBH Suitable Raycus Laser Source

Operating Temperature : -10-+50℃ Service Life :Over 10000hours

Application

Industrial Processing;
High Power Cutting;
Laser Drilling; Welding;
Rust Removal;
3D Printing Equipment

High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
Features
Applications
High Handling Power
Fiber Lasers
Water Cooling System & Compatible Design
Research & Design
Cladding Mode Stripper Integrated
Laser Cutting
Interlock System Integrated
Laser Cleaning
Excellent Environmental Stability and Reliability
Specifications
Laser Welding
Parameters
Unit
Values
Operating Wavelength
nm
900~1000(Nominal Center Wavelength 950nm) 1030~1090(Nominal Center Wavelength 1064 nm)
Typ. Transmission Ratio
-
99%
Min. Transmission Ratio
-
98%
Max. Handling Power (CW)
W
1000, 2000, 4000, 6000 ,8000 or Specify
Pulse Power

-
Max. 10KW @ 10ms
Max. 50KW @ 1ms
Max. 1MW @50ns
Loss Power Handling Capability
-
1KW for 10 min
500W Continuously
Nominal Beam Pointing Accuracy
deg
1
Min. Beam Ellipticity
-
0.92
Max. Fiber Tensile Load
N
5
Package Material
-
Stainless Steel / Aluminum / Copper
Operating Temperature
ºC
+10 to +50
Storage Temperature
ºC
- 10 to +75
Max. Water Pressure
Bar
8
Flow of Water
L/min
1.5-3
Fiber Length ≤15 m
-
The Fiber Length Tolerance is - 10cm
15m
-
The Fiber Length Tolerance is -20cm
Jacket Length ≤15m
-
The Jacket Length Tolerance is +0.2/-0. 1m
15m
-
The Jacket Length Tolerance is +0.4/-0.2m
Company Profile
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
Our Hicorpwell Team
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
High Power Laser Fiber Cable with 20/25/50UM Core Diameter 16/20M Length and 1080nm Wavelength for Industrial Applications
FAQ
Q1: Are your trading company or manufacture ? A: We are factory verified by TUV Q2: What is your delivery time ? A: Generally, sample: 3~5 working days. formal order: 7-10 working days. Q3: Do you provide OEM service ? A: Yes, we can print your logo or label on the products or on the box. Q4: Can you provide free samples ? A: Some of low value samples can be free for you, but you need pay for the shipping cost. Q5: How can you guarentee the quality ? A: Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q6: What's your payment terms ? A: We accept T/T, Western Union, Money Gram, Paypal. For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
